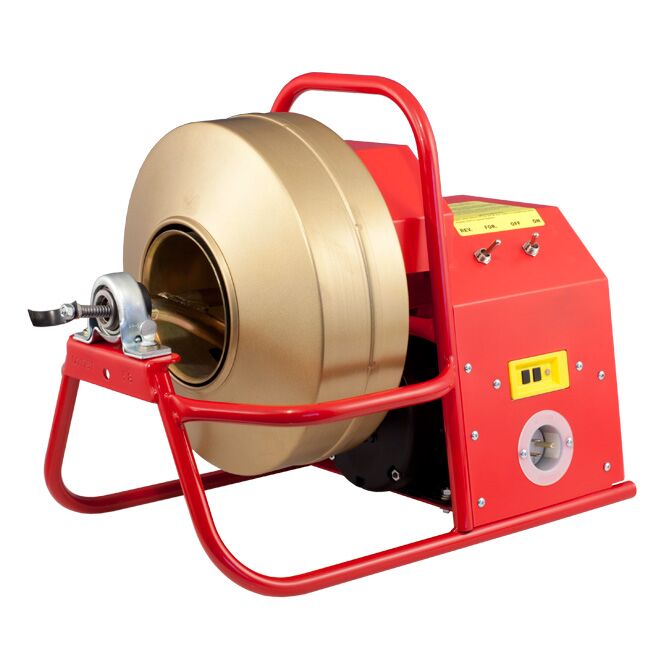

GO 380A – Gorlitz Drain Machine, 3/8 X 90′

Gorlitz Models 380/250 Series machines are built with a unique frame construction that ensures durability, and strength and is available in five versatile cable and drum combinations. The drums and cable sizes determine the model and will adapt to any frame to form a combination machine. All drums are equipped with free-spinning inner hubs to retain and prevent the cables from kinking. Incorporating simplicity, the covers are provided with an easily accessible ground fault circuit interrupter, receptacle, on/off, and forward/reverse switches. Available in three different colors, red, blue, or black.

GO 380/250 Series machines are recommended to be used with the optional T 07B Electric Footswitch to allow the operator’s hands to be free to guide the cable into the drain opening. An additional option is the T 32 Machine Dolly for easy transportation to the job site.

This unit is driven by a specially designed high torque dual capacitor ball bearing motor for clearing sink and drain lines from 1 1/2″ to 3″ in diameter up to 90 feet long. Gorlitz™ Model GO 380A can be operated in a horizontal or vertical position. An optional Trunk # 263A is available to guide the 3/8″ diameter cable into any small drain or vent by using Vent Roller # T 25.



  • 1/4 HP 110 Volt Ball Bearing Motor
  • Ground Fault Interrupter
  • 3/8″ X 90′ Cable
  • Cable Rotation: 230 RPM
  • Pipe Size: 1 1/2″ to 3″ Diameter
  • Maximum Pipe Length: 90 Feet
  • Dimensions: 18″ L x 14″ W x 16″ H
  • Net Weight: 55 LBS


Download Operations Manual

Additional information

Weight 55 lbs
