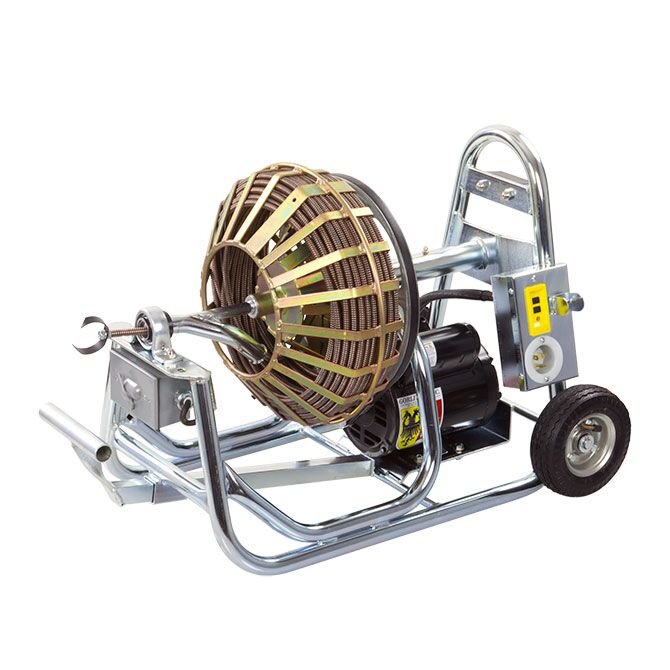

Gorlitz Drain Machine | 3/8 X 90′ | GO 50A

Gorlitz™ Model GO 50 Series are our junior-sized machines and available with three different cable sizes and in several reel and/or drum combinations. All drums and reels accepting 1/2″, 3/8″, or 13/32″ diameter cable can be purchased at any time to offer flexibility and to suit the operator’s needs in the future. Due to its reduced weight and size, these machines are ideally suited to operate in confined areas.

Reel # 501 for 1/2″ diameter cable accepts Splash Guard # T 28B and Reel # 502 for 3/8″ or optional 13/32″ diameter cable accepts Splash Guard # T 28A. This combination model does accept our Gorlitz™ Power Cable Feeder and Puller # T 01 using Mounting Bracket # T02 or sized down Gorlitz™ Power Cable Feeder and Puller T 01A and Mounting Bracket T 02A.

The lower feeder pistons on both the Power Cable Feeder and Puller models are adjustable to accommodate all three cable sizes. All reels and drums can be provided with an optional Reel and Drum Safety Disk # 516 which is attached directly to the drive arm. T 07B Electric Foot Switch is an option with this model.

The GO 50A offered with a 14″ diameter steel reel is relatively small, very compact, and extremely durable. A comfortable rear handle, phenol wheels and pull stick ease handling or transportation. Equipped with a 1/3 HP capacitor reversible ball bearing motor, this machine is suggested for vents and small drain lines from 1 1/2″ to 3″ in diameter up to 90 feet long.

Features | Gorlitz Drain Machine | 3/8 X 90′ | GO 50A

  • 1/3 HP 110 Volt Ball Bearing Motor
  • Ground Fault Interrupter
  • 3/8″ X 90′ Cable
  • Cable Rotation: 190 RPM
  • Pipe Size: 1 1/2″ to 3″ Diameter
  • Maximum Pipe Length: 90 Feet
  • Dimensions: 28″ L x 18″ W x 19″ H
  • Extended Dimensions: 40″ L x 18″ W x 19″ H
  • Net Weight: 76 LBS

Download Operations Manual

Don’t forget to check out our wide range of Gorlitz cables to complete your setup. And for all your plumbing needs, explore our full line of Gorlitz products.

Get professional quality drain and sewer cleaning equipment from J.M. McKinney Co. – offering the best Gorlitz brand equipment for all your needs! Shop now to find reliable, durable tools that will get the job done right and last a lifetime.

Additional information

Weight 76 lbs
