GO 50S – Gorlitz Drain Machine, 1/2 X 125′

$1,540.00

Alpine Plumbing Equipment Funding

Need Equipment Funding?

Contact our friends at Alpine Equipment Funding. They specialize in providing funding for professional plumbing equipment ($5K minimum).

Description

GO 50S – Gorlitz Drain Machine, 1/2 X 125′

Gorlitz™ Model GO 50 Series are our junior-sized machines and available with three different cable sizes and in several reel and/or drum combinations. All drums and reels accepting 1/2″, 3/8″, or 13/32″ diameter cable can be purchased at any time to offer flexibility and to suit the operator’s needs in the future. Due to its reduced weight and size, these machines are ideally suited to operate in confined areas.

Reel # 501 for 1/2″ diameter cable accepts Splash Guard # T 28B and Reel # 502 for 3/8″ or optional 13/32″ diameter cable accepts Splash Guard # T 28A. This combination model does accept our Gorlitz™ Power Cable Feeder and Puller # T 01 using Mounting Bracket # T02 or sized down Gorlitz™ Power Cable Feeder and Puller T 01A and Mounting Bracket T 02A. The lower feeder pistons on both the Power Cable Feeder and Puller models are adjustable to accommodate all three cable sizes. All reels and drums can be provided with an optional Reel and Drum Safety Disk # 516 which is attached directly to the drive arm. T 07B Electric Foot Switch is an option with this model.

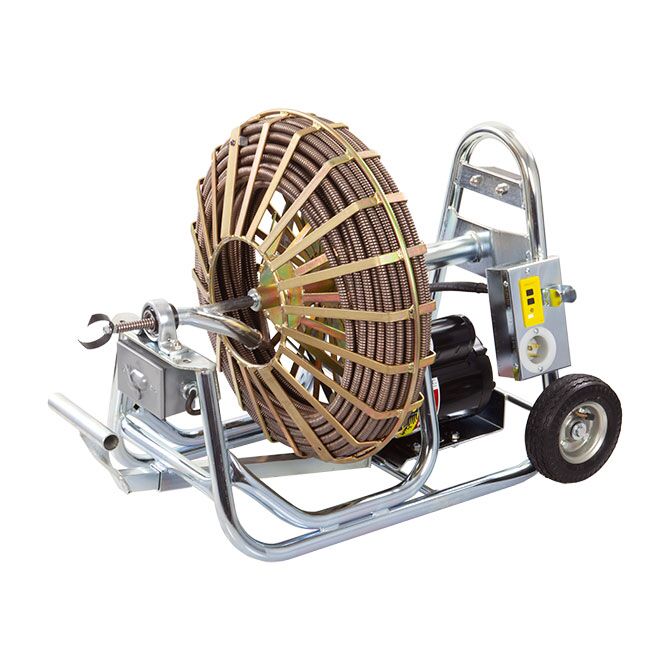

The GO 50S offered with an open type 20″ diameter steel reel is relatively small, very compact, and extremely durable. A comfortable rear handle, phenol wheels, and retractable pull stick ease handling or transportation. Equipped with a 1/3 HP capacitor reversible ball bearing motor, this machine is suggested for vents, light roots, and small drain lines from 2″ to 3″ in diameter up to 125 feet long.



Features

  • 1/3 HP 110 Volt Ball Bearing Motor
  • Ground Fault Interrupter
  • 1/2″ X 125′ Cable
  • Cable Rotation: 190 RPM
  • Pipe Size: 2″ to 3″ Diameter
  • Maximum Pipe Length: 125 Feet
  • Dimensions: 28″ L x 20″ W x 22″ H
  • Extended Dimensions: 40″ L x 20″ W x 22″ H
  • Net Weight: 101 LBS



Download Operations Manual

Additional information

Weight 101 lbs
