Description

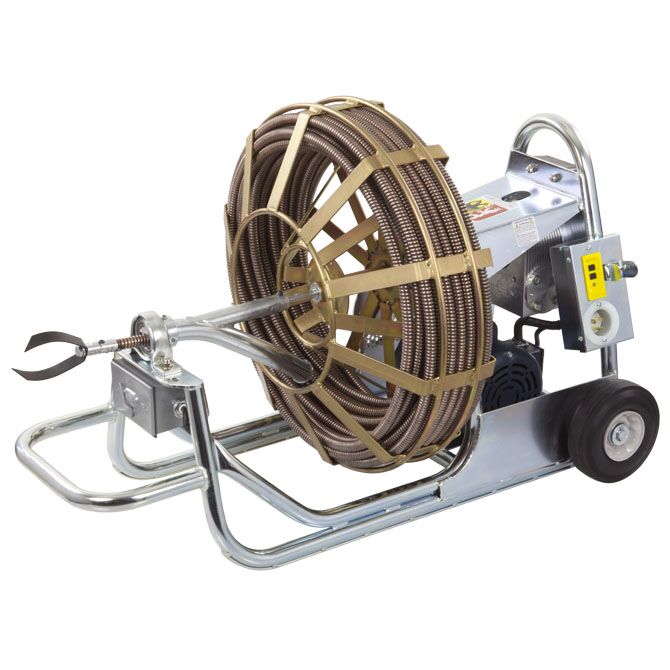

GO 62A HD – Gorlitz Sewer Machine, 5/8 X 100′

Reduced in size but powerful in its application, these combination machines were designed to fill the gap between our larger sewer and smaller sink cleaning machines. Because of its power and versatility, it is also very popular with general contractors and professional plumbers. The Model GO 62HD Series is available in a variety of reel and/or drum combinations and is completely interchangeable to fully accommodate the needs of the operator.

All steel reels are offered with optional nylon-reinforced splash guards. Reel # 621 for 5/8″ diameter cable accepts Splash Guard # T 28C, Reel # 501 for 1/2″ diameter cable accepts Splash Guard # T 28B and Reel # 502 for 3/8″ diameter cable accepts Splash Guard # T 28A. These combination models do accept our Gorlitz™ Power Cable Feeder and Puller # T 01 and Mounting Bracket # T02. The lower feeder pistons are adjustable to accommodate all three cable sizes. All reels and drums can be provided with an optional Reel and Drum Safety Disk # 516 or # 712 which is attached directly to the drive arm. Due to the weight of the machine, we recommend the use of our Hoist # 02 for lifting or Ramp # T 04A and Winch # T 05 setup for loading the machine onto any vehicle.

The Gorlitz™ Model 62A HD is a mirror image of our larger Model GO 68HD and is highly preferred due to its smaller size and lighter weight. This unit is ideal for getting into tight spaces or through narrow doorways and basements. With a quick turn of the allen wrench the machine can be broken down into separate frame and drum components for easy transportation or adding an additional cable and drum for extended reach. The ball-bearing 1/3 HP reversible motor develops approximately 100 lbs. of torque and cleans sewer and drain lines from 3″ to 4″ in diameter up to 200 feet long.



Features

  • 1/3 HP 110 Volt Ball Bearing Motor
  • 10:1 Ratio Heavy Duty Gearbox
  • Ground Fault Interrupter
  • 5/8″ X 100′ Cable & Reel
  • Cable Rotation: 165 RPM
  • Pipe Size: 3″ to 4″ Diameter
  • Maximum Pipe Length: 200 Feet
  • Dimensions: 35″ L x 22″ W x 24″ H
  • Net Weight: 146 LBS



Download Operations Manual
