GO 68HD PE – Gorlitz Geared Sewer Machine, 11/16 X 150′

$3,440.00

Alpine Plumbing Equipment Funding

Need Equipment Funding?

Contact our friends at Alpine Equipment Funding. They specialize in providing funding for professional plumbing equipment ($5K minimum).

Description

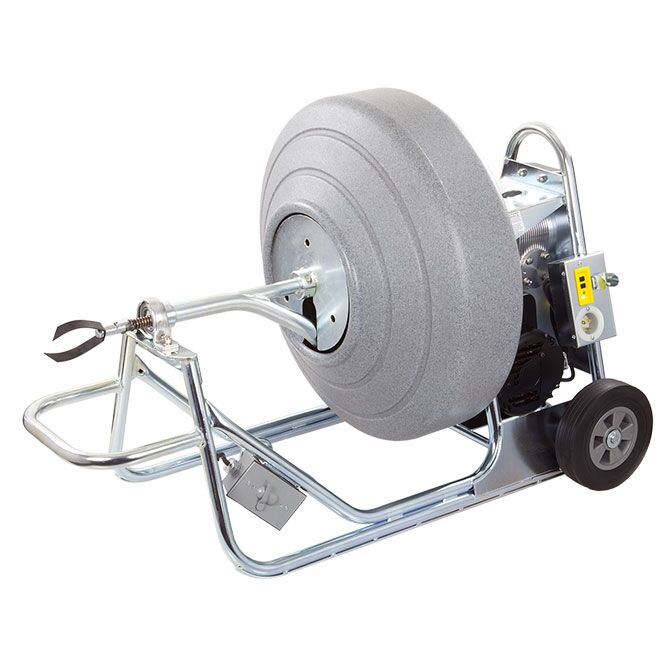

GO 68HD PE – Gorlitz Geared Sewer Machine, 11/16 X 150′

Gorlitz™ Model GO 68HD Series heavy-duty drain cleaning machines without compromise is the choice of the professional. Due to its power, motor, and gearbox combination, these models will outperform and outperform all other machines in its class. These heavy-duty machines are available in two different versions, either with an open steel reel or an enclosed polyethylene drum. Additional reels or drums or as a combination to suit the operator’s job condition can be added at any time.

All GO 68HD Models accept our optional Gorlitz™ Power Cable Feeder and Puller # T 01 and Mounting Bracket # T 02. It is recommended to operate these heavy-duty drain cleaning machines with our cable feeder and puller for safer and more efficient pipe cleaning procedures. The use of the feeder also avoids operator stress and fatigue. In addition, and due to the weight of the machine, we recommend the use of our Hoist # 02 for lifting or Ramp # T 04 and Winch # T 05 setup for loading the machine onto any vehicle.

The open reels accept our optional nylon-reinforced canvas Splash Guard # T 28D. In addition, our reels and drums can be provided with an optional Reel and Drum Safety Disk # 712 which is attached directly to the drive arm.

This heavy-duty model is equipped with a 1 HP reversible motor and a separate 10:1 ratio gearbox. Additional features include skid bars for added frame protection, large rubber wheels, and a front handle for easy transportation. The rear rubber bumper absorbs shock when positioning the machine on its back while the added feature of a tow ring helps to pull the machine up the ramp. This model performs smoothly, quietly, and efficiently and is designed for easy one-man operation. Gorlitz™ Model GO 68HD is perfect for clearing roots, sludge, grease, sand, and rags in sewer lines from 3″ to 10″ in diameter up to 500 feet long.

This heavy-duty model is equipped with a 1 HP reversible motor and a separate 10:1 ratio gearbox. Additional features include skid bars for added frame protection, large rubber wheels, and a front handle for easy transportation. The rear rubber bumper absorbs shock when positioning the machine on its back while the added feature of a tow ring helps to pull the machine up the ramp. This model performs smoothly, quietly, and efficiently and is designed for easy one-man operation. Gorlitz™ Model GO 68HD PE is perfect for clearing roots, sludge, grease, sand, and rags in sewer lines from 3″ to 10″ in diameter up to 500 feet long.



Features

  • 1 HP 110 Volt Ball Bearing Motor
  • Ground Fault Interrupter
  • 10:1 Ratio Heavy Duty Gearbox
  • 11/16″ X 150′ Cable
  • Cable Rotation: 175 RPM
  • Pipe Size: 3″ to 10″ Diameter
  • Maximum Pipe Length: 500 Feet
  • Dimensions: 43″ L x 26″ W x 30″ H
  • Net Weight: 248 LBS



Download Operations Manual

Additional information

Weight 248 lbs
