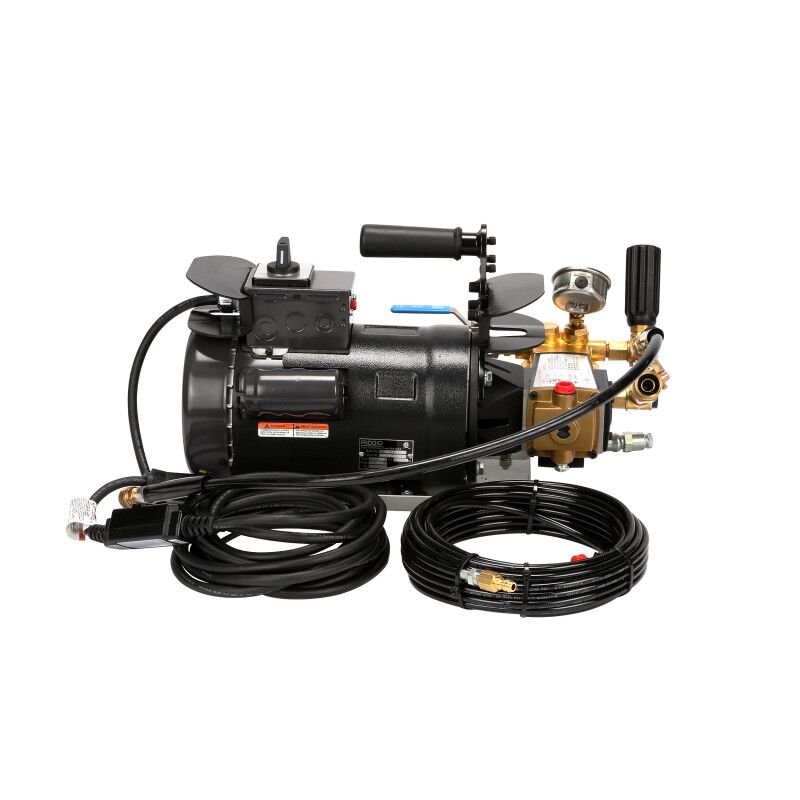

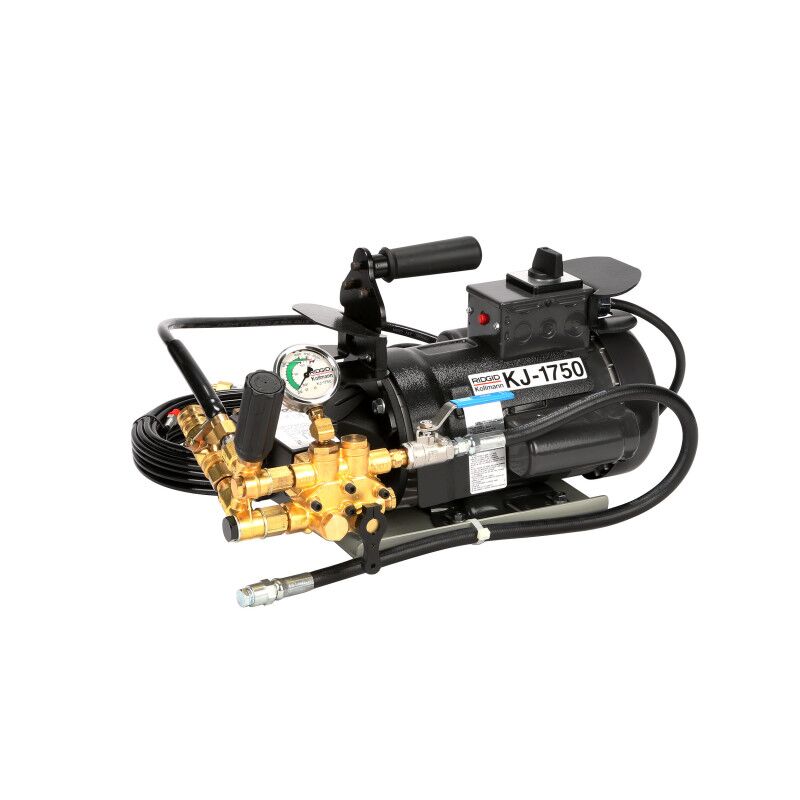

RIDGID KJ-1750 Water Jetter | 1,750 PSI Portable Drain Cleaner (Model 62697)

Description

RIDGID KJ-1750 Water Jetter | 1,750 PSI Portable Drain Cleaner (Model 62697)

The RIDGID KJ-1750 Water Jetter (Model 62697) is a compact, electric-powered jetter that restores flow in 1¼″–4″ drain lines. With 1,750 PSI of working pressure and dual pulse control, it blasts through grease, soap, and sludge while power-scrubbing pipe walls for lasting results.

Features & Benefits

• Pro cleaning power: 1,750 PSI at 1.4 GPM cuts through heavy buildup and restores full flow quickly.
• Dual Pulse Action: Two selectable pulse levels help the hose negotiate tight bends, traps, and transitions with less effort.
• Portable workflow: Pair with the optional H-30 Cart to roll the jetter and hose to the job; remove the unit in seconds for remote setups or storage.
• Easy to use: Water thrust pulls the hose down the line—just guide and reel; ideal for one-tech operation.
• Durable pump design: Duplex pump with a forged brass head resists corrosion; pressure control valve enables quick fine-tuning.
• Fewer leak points: Simplified fittings, hoses, and parts help minimize downtime and maintenance.
• Versatile add-ons: Optional power washer package for cleaning cables, tools, and equipment between jobs.
• Compliance: CSA approved; tested to UL standards (NRTLC) for electrical safety.

Detailed Description

The RIDGID KJ-1750 Water Jetter is engineered for everyday drain cleaning in residential, light commercial, and multi-unit settings where grease, soap, and sludge are frequent offenders. Its compact footprint and electric motor make it an excellent choice for indoor or tight mechanical rooms where ventilation for combustion engines is a concern.

At the heart of the KJ-1750 is a duplex pump with a forged brass head, chosen for strength and resistance to corrosion. The pump delivers a balanced 1.4 GPM at 1,750 PSI, an ideal combination for scouring buildup without damaging pipe walls. With two levels of Pulse, operators can increase vibration to help the hose work through P-traps, returns, and multiple 90° bends that commonly stall lesser jetters. Once the blockage is breached, pulling the hose back power-scrubs the line to wash debris away, reducing call-backs and improving long-term flow.

Mobility is central to the KJ-1750’s design. The optional H-30 Cart lets techs roll the jetter and a 110′ x ½″ jet hose across parking lots, hallways, or elevators with control. Need a smaller footprint? An optional adapter allows mounting to the compact H-10 Cart for service vans with limited space. In both cases, a quick-release design lets you remove the jetter in seconds to relocate the unit or stash it securely.

Electrical requirements are straightforward for the shop or job site: the 2.0 HP motor draws a max of 17 amps and requires a 115V / 20A circuit. A pressure control valve enables fast adjustment to match nozzle, hose length, and pipe condition, while the streamlined hydraulic path reduces fittings and potential leak points.

The key benefit is fast, thorough cleaning with simple operation. The RIDGID KJ-1750 Water Jetter gives teams reliable power, controllable pulse, and flexible transport options so they can clear drains safely and efficiently—without over-complicating the setup.

Specifications

Spec	Detail
Primary Keyword	RIDGID KJ-1750 Water Jetter
Line Capacity	1¼″ – 4″ (32 – 100 mm)
Working Pressure / Flow	1,750 PSI at 1.4 GPM (5.3 L/min)
Motor	2.0 HP electric, 115V
Amperage	Max 17A (requires 20A, 115V circuit)
Pulse Modes	Two selectable levels
Pump Head	Forged brass, duplex design
Certifications	CSA approved; tested to UL standards (NRTLC)
Mobility Options	Optional H-30 Cart; optional H-10 Cart adapter
Typical Hose Pairing	110′ x ½″ jet hose (sold separately or in select kits)
Model / SKU	62697
Operator’s Manual	Download PDF

Use Cases

• Restaurants & food service: Remove grease and soap buildup from kitchen laterals and floor drains before it becomes a costly backup.
• Property management: Keep multi-family lines clear of sludge and detergent residue; reduce resident disruptions and emergency calls.
• Residential service: Clear 1¼″–4″ lines from cleanouts and fixtures; finish with a scrub pass to reduce call-backs.
• Maintenance shops: Add the power washer package to clean cables, tools, and equipment at the end of the day.

This product is ideal for plumbing and drain-cleaning professionals who need a reliable, portable electric jetter for everyday grease, soap, and sludge in small- to mid-diameter lines.

Why Choose the RIDGID KJ-1750 Water Jetter?

• Proven performance: Balanced PSI/GPM for aggressive cleaning without risking pipe damage.
• Operator-friendly: Dual pulse, easy pressure adjustment, and water-thrust feeding simplify training and operation.
• Jobsite ready: Optional carts and quick-release design make transport and storage fast and safe.
• Built to last: Forged brass head and simplified plumbing minimize leaks, maintenance, and downtime.

In summary, the RIDGID KJ-1750 Water Jetter delivers the portability and power to clear and clean small- to mid-diameter drains with confidence.

Frequently Asked Questions (FAQ)

What line sizes can the KJ-1750 clean?

The RIDGID KJ-1750 Water Jetter is designed for 1¼″–4″ lines, making it ideal for residential and light commercial drains.

What power does the jetter require?

It uses a 2.0 HP electric motor drawing up to 17A on a 115V / 20A circuit.

How does Dual Pulse help in tough runs?

Pulse increases hose vibration to help negotiate bends, traps, and transitions—improving reach and reducing operator effort.
